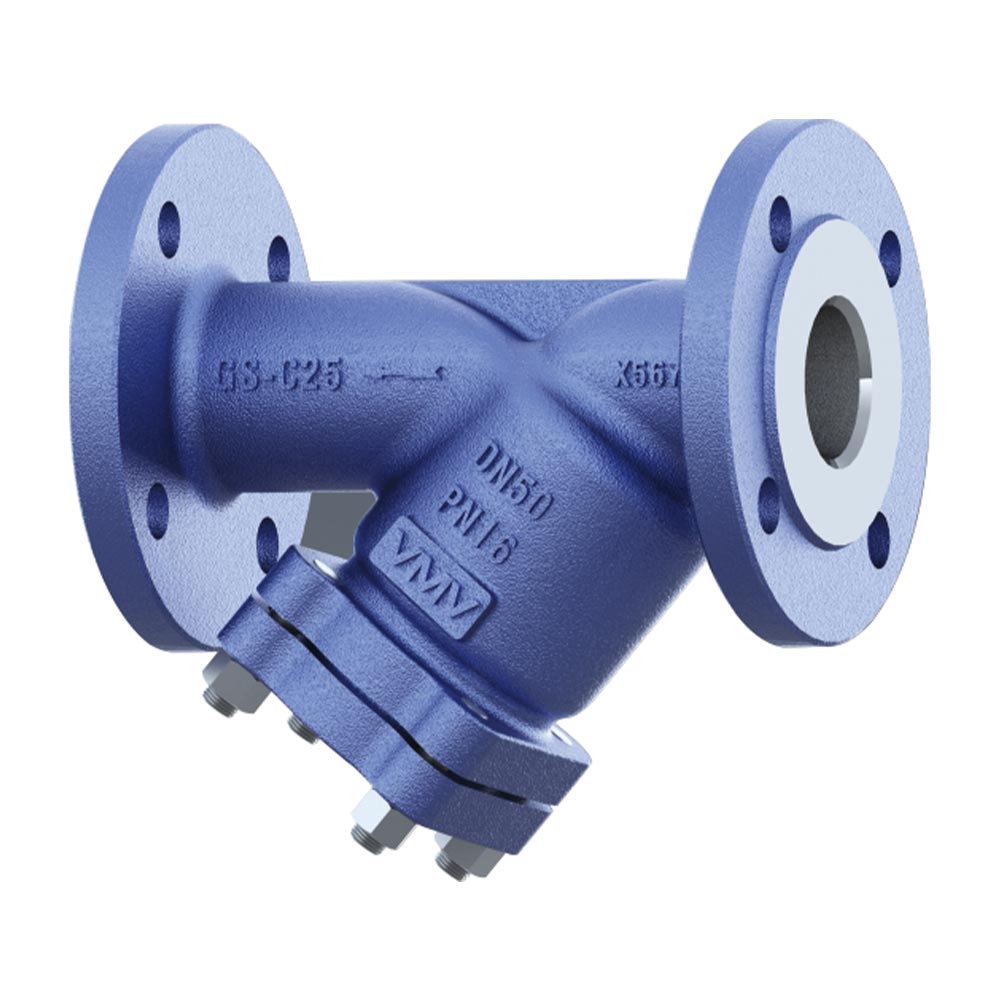

YG45 DIN Strainer

The DIN standard Y type strainer is a device used to eliminate particulate impurities in the medium, which can effectively protect the normal operation of valves and equipment on the pipeline.

YG45 DIN Strainer

Description

The DIN standard Y type strainer is a device used to eliminate particulate impurities in the medium, which can effectively protect the normal operation of valves and equipment on the pipeline. When cleaning is required, just take out the detachable strainer screen and reload it after processing, which is extremely convenient for maintenance. WCB cast steel material, doublelayer stainless steel strainer screen, more thorough filtration of impurities and better corrosion resistance.
Optional drain plug for quick maintenance.

Technical Standard
  • GB/T12250-2005 “Steam Trap Terminology Marking Structure Length”
  • GB/T22654-2008 “Technical Conditions for Steam Traps”
  • GB/T12251-2005 “Test Method for Steam Traps”
  • ISO 6948 Automatic steam traps

Production and performance characteristic tests

Technical Parameter
ModelConnection MethodNominal Pressure DNWorking Pressure RangeMPaCondition Temperature °C/ Pressure MPa
YG45Flange150.05-1.6260/1.0
200.05-1.6260/1.0
250.05-1.6260/1.0
320.05-1.6260/1.0
400.05-1.6260/1.0
500.05-1.6260/1.0
650.05-1.6260/1.0
800.05-1.6260/1.0
1000.05-1.6260/1.0
1250.05-1.6260/1.0
1500.05-1.6260/1.0

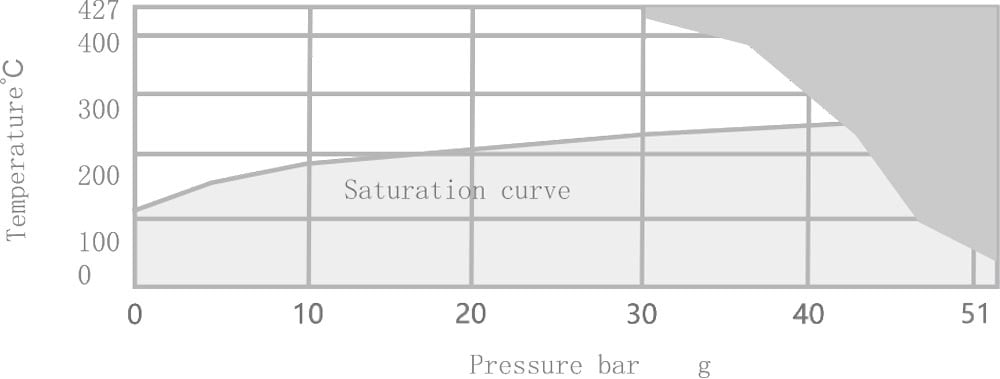

DIN Strainer YG45 Work scope

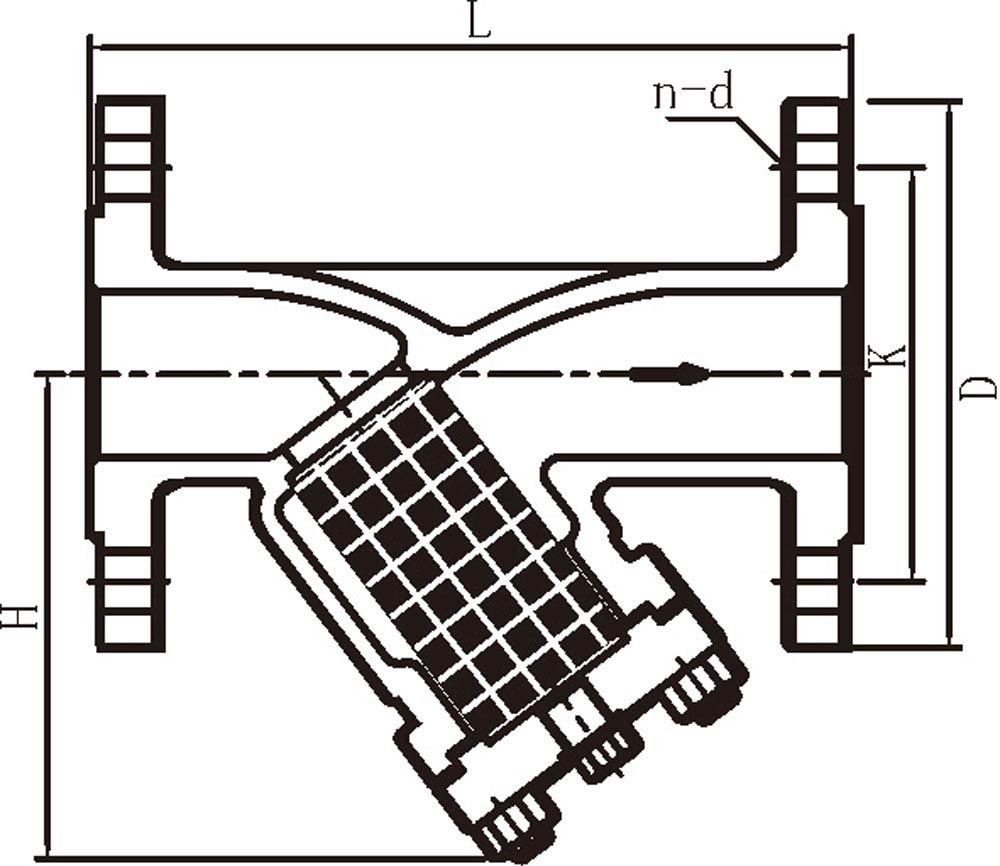

DIN Strainer YG45 Structure Diagram

ModelNominal SizeL H D K n-dWeight
YG45DN15130 85 95 65 4-142.9 kg
DN20150 95 105 75 4-143.5 kg
DN25160 110 115 85 4-144.8 kg
DN32180 125 140 100 4-186.6 kg
DN40200 145 150 110 4-188.8 kg
DN50230 155 165 125 4-1810.6 kg
DN65290 175 185 145 4-1817.5 kg
DN80310 210 200 160 8-1820.5 kg
DN100350 230 220 190 8-1829 kg
DN125400 270 250 220 8-1843 kg
DN150480 300 285 250 8-2264 kg
