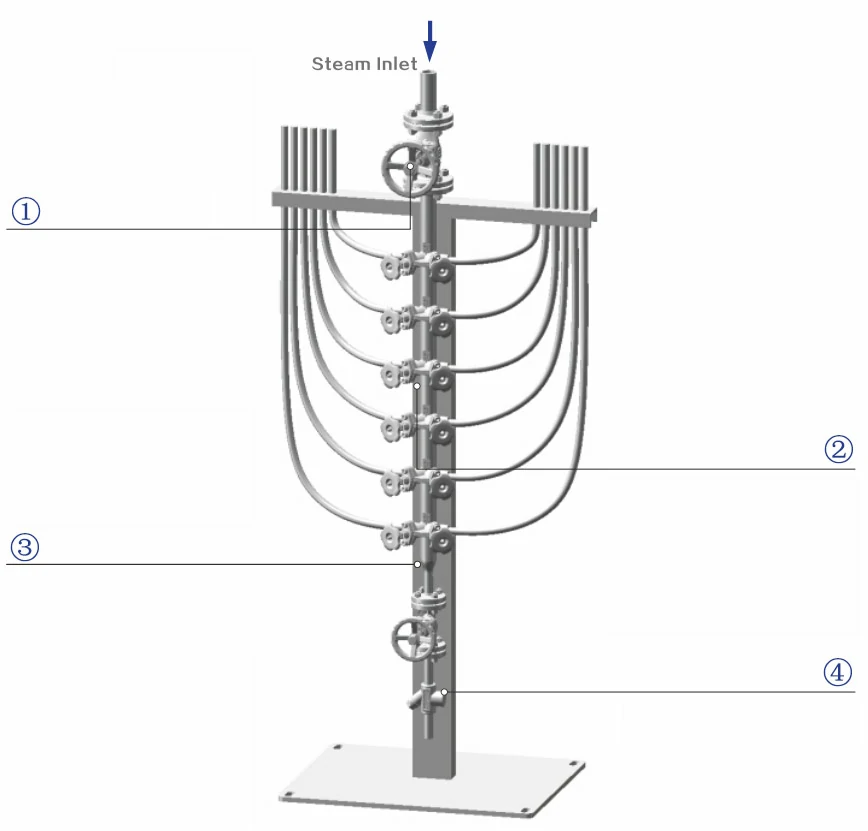

Equipped with bellows globe valve for steam inlet Ensure zero leakage and maintenance free at the packing Line Sealed Seat Improve sealing performance Precision machined stainless steel handwheel Ergonomically designed
Centralize all steam distribution valves Standardized and integrated skid-mounted combination Reduce construction time and cost for on-site installation Configure VMV bellows globe valve and steam trap Built-in bellows globe valve ensures zero leakage at packing Spherical line sealing structure of valve core improves sealing performance
Optional customized steel base and frame Manifolds on both sides for optimal installation sequencing Easy on-site installation
Bottom configuration steam trap Remove condensed water

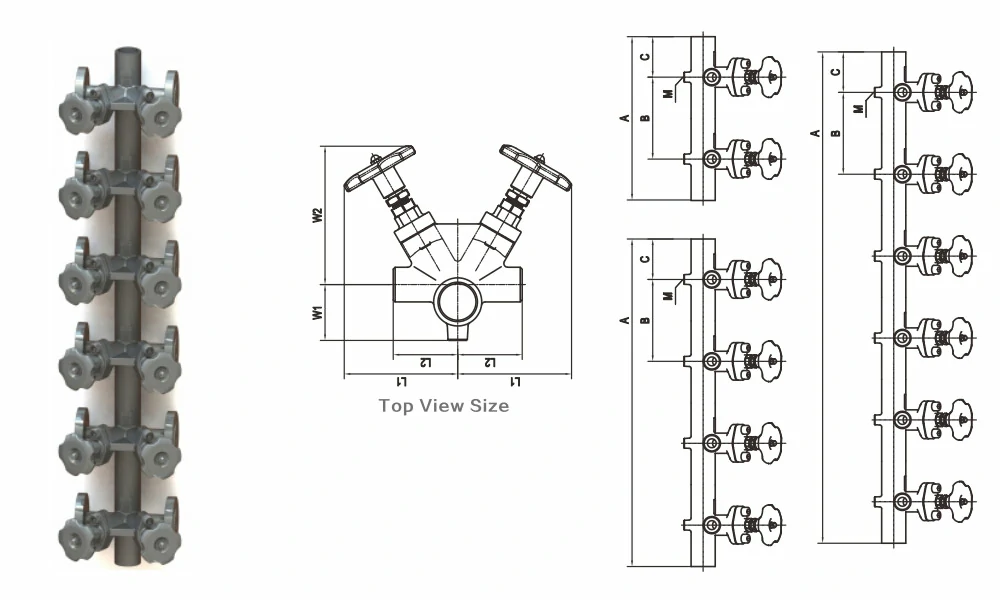

| Product | Interface | Director | Manifold | Shape | Weight | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | QTY | Size | Size | A | B | C | L1 | L2 | W1 | W2 | M | KG |
| BSPM03-4 | 4 | 40/50 | 15/20 | 340 | 170 | 85 | 120 | 67 | 145 | 58 | M12 | 9.2 |
| BSPM03-6 | 6 | 40/50 | 15/20 | 510 | 170 | 85 | 120 | 67 | 145 | 58 | M12 | 13.8 |
| BSPM03-8 | 8 | 40/50 | 15/20 | 680 | 170 | 85 | 120 | 67 | 145 | 58 | M12 | 18.5 |
| BSPM03-10 | 10 | 40/50 | 15/20 | 850 | 170 | 85 | 120 | 67 | 145 | 58 | M12 | 23.1 |
| BSPM03-12 | 12 | 40/50 | 15/20 | 1020 | 170 | 85 | 120 | 67 | 145 | 58 | M12 | 27.8 |
Product Description
VMV’s”Condensate Manifold” integrates all components required for it (steam traps,manifolds, valves, etc). All components are installed on the base bracket, and the manifolds are scientifically distributed on both sides to provide a compact, easy to disassemble centralized positioning assembly.
The Body is made of corrosionresistant material
CF8, which is suitable for highend mainfolds,instruments, chemical corrosionresistant pipes and pipeline heating. The instrument heating recovery pipes can be connected by ferrules.
