SPT20T Three Pump Trap System Device (Open)

Model: SPT20T (open system)
Name: Three Pump Trap System Device (Open)
Weight: 740kg
Volume:1670x1390x1875(mm)
Nominal pressure: PN16

Get A Quote

SPT20T Three Pump Trap System Device (Open)

  • 2024 年 7 月 29 日

Description

Model: SPT20T (open system)
Name: Three Pump Trap System Device (Open)
Weight: 740kg
Volume:1670x1390x1875(mm)
Nominal pressure: PN16
Maximum Allowable Pressure: 1.6mpa/204 ° C
Maximum Working Pressure: 1.37mpa/250 ° C
Flange Standard: HG / T20592; PN16 RF
Power Steam Consumption: 5kg / T (condensate)
Power Air Consumption: 7.6m3/t (condensate)
Limitation: The water collecting tank (upper water tank) is not under pressure and is only used as open buffer water

Technical Standard

·GB/T12250-2005Steam Traps Terminology Marking
Construction Length
·GB/T22654-2008 Technical conditions of steam traps
.GB/T12251-2005 Test methods for steam traps
ISO 6948 Automatic steam traps
Production and performance characteristic tests

  • GB/T12250-2005 Steam Trap Terminology Marking Construction Length
  • GB/T22654-2008 Technical conditions of steam traps
  • GB/T12251-2005 Test methods for steam traps
  • ISO 6948 Automatic steam traps

Production and performance characteristic tests

Part NamePart ModelSpecificationsMaterialQuantity
Pump Steam TrapPT20DN80/DN50WCB3
Check ValveH71H-16PDN80 PN163043
Check ValveH71H-16PDN50 PN163043
Open water collecting tankQ3451
Ball ValveQ11H-16PDN253043
Ball ValveQ11H-16PDN153043
Steam TrapSTD16F-16DN15WCB1
Bellow Seal Globe ValveWJ41H-16CDN25 PN16WCB1
BaseQ3451
Ball ValveQ41H-16CDN80 PN16WCB3
FilterY typeDN25 PN16WCB1
Exhaust hoseDN25 PN163043

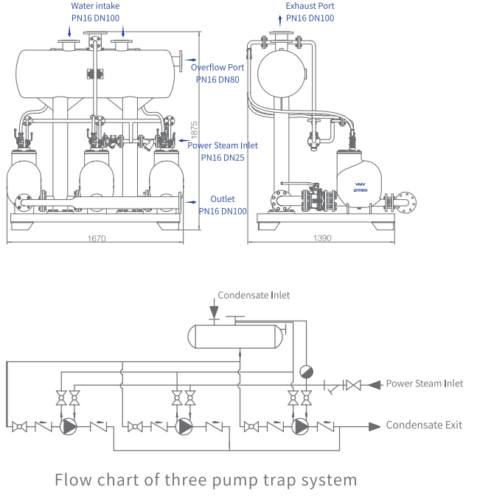

Three Pump Trap System Device (Open) SPT20T Structure Chart
