Description
Working Principle
The working principle of the bimetallic trap is to rely on the different temperature between saturated steam and condensed water.
When the set temperature is reached, the condensate is continuously drained Features
Features

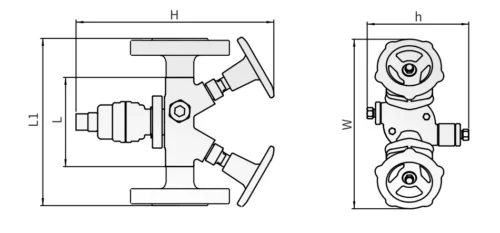

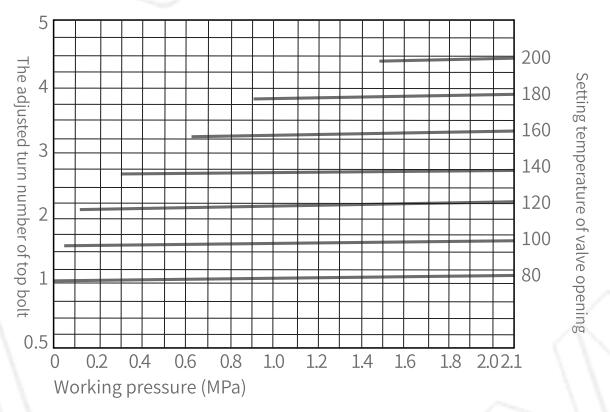

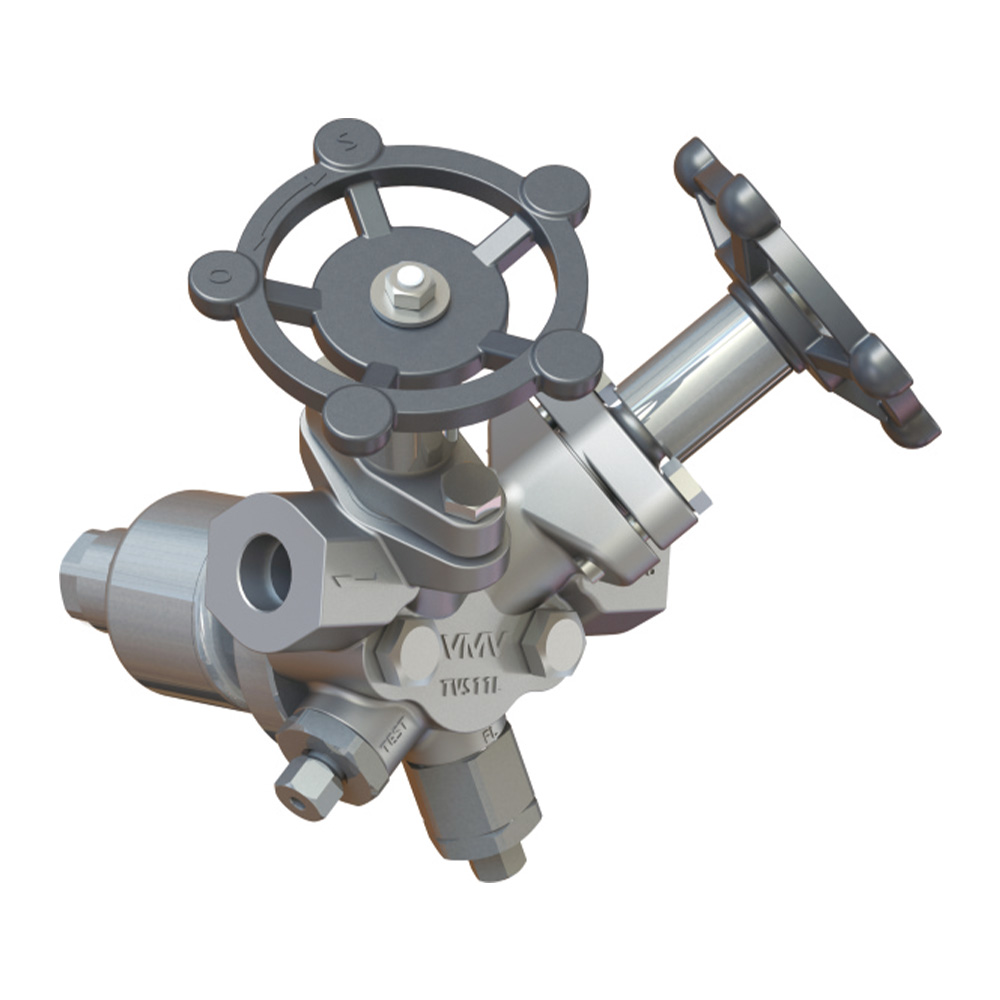

The thermostatic (bimetallic) steam trap station is a TVS station composed of stainless steel bimetallic steam traps and front and rear stainless steel valves, filters and inspection valves; the steam traps and TVS stations are made of stainless steel; Adjustable temperature bimetallic sheet makes full use of the sensible heat of high temperature condensate;It is easy to replace, and there is no need to install stop valves, filters and inspection valves at the front and rear ends of the trap;
