Description
Working Principle
The working principle of the bimetallic steam trap is to rely on the different temperature between saturated steam and condense water.
When the set temperature is reached, the condensed water is
Features
The body and bonnet are all made of forged steel A105.
The disc and seat are made of special stainless steel with heat treatment. The disc hardness is as high as HRC55, which improves the service life of the steam trap.
Imported bimetallic ensure precise temperature control.
The closing system adopts high-precision wire sealing structure.
Built-in filter makes the trap work in a clean environment.
The back pressure rate is as high as 50% or more.
Technical Standard
GB/T12250-2005 Steam Traps Terminology Marking Structure Length
GB/T22654-2008 Technical Conditions for Steam Traps
GB/T12251-2005 Test Method for Steam Traps
ISO 6948 Automatic steam traps

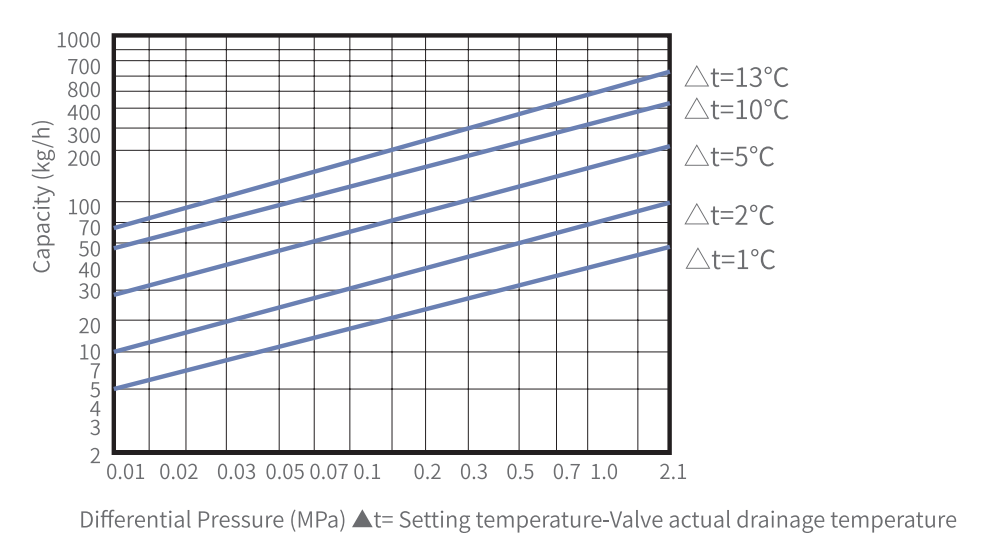

Production and performance characteristic tests
