The body and bonnet are made of heat-resistant steel casting material.
All internal parts are made of stainless steel, and the wear allowance has been fully considered in the design of movable parts, which improves the service life of the trap.
The body and bonnet are made of heat-resistant steel casting material.
All internal parts are made of stainless steel, and the wear allowance has been fully considered in the design of movable parts, which improves the service life of the trap.
Double balanced seat for long sevice life.
Up and down the flow path to ensure that there is no locking.
Water seal design,no original steam leakage.
The back pressure rate is as high as 95%.
GB/T12250-2005 Steam Traps Terminology Marking Structure Length
GB/T22654-2008Technical Conditions for Steam Traps
GB/T12251-2005 Test Method for Steam Traps
ISO 6948 Automatic steam traps
Production and performance characteristic tests
| Nominal pressure | PN40 |
| Max. allowable pressure (Shell) | 3.92MPa/200℃ |
| Max. allowable temperature (Shell) | 450°C/1.66MPa |
| Factory steam action test | >3 times/1.6MPa |
| Max. working pressure | 3.2MPa |
| Max. operating temperature | 350C |
| Factory cold test pressure | 6.0MPa |
| Air test | 2.0MPa |
Bonnet:WCB
Body: WCB
Seat: Martensitic Stainless Steel
Disc: Martensitic Stainless Steel
Other Internal Parts: Martensitic Stainless Steel

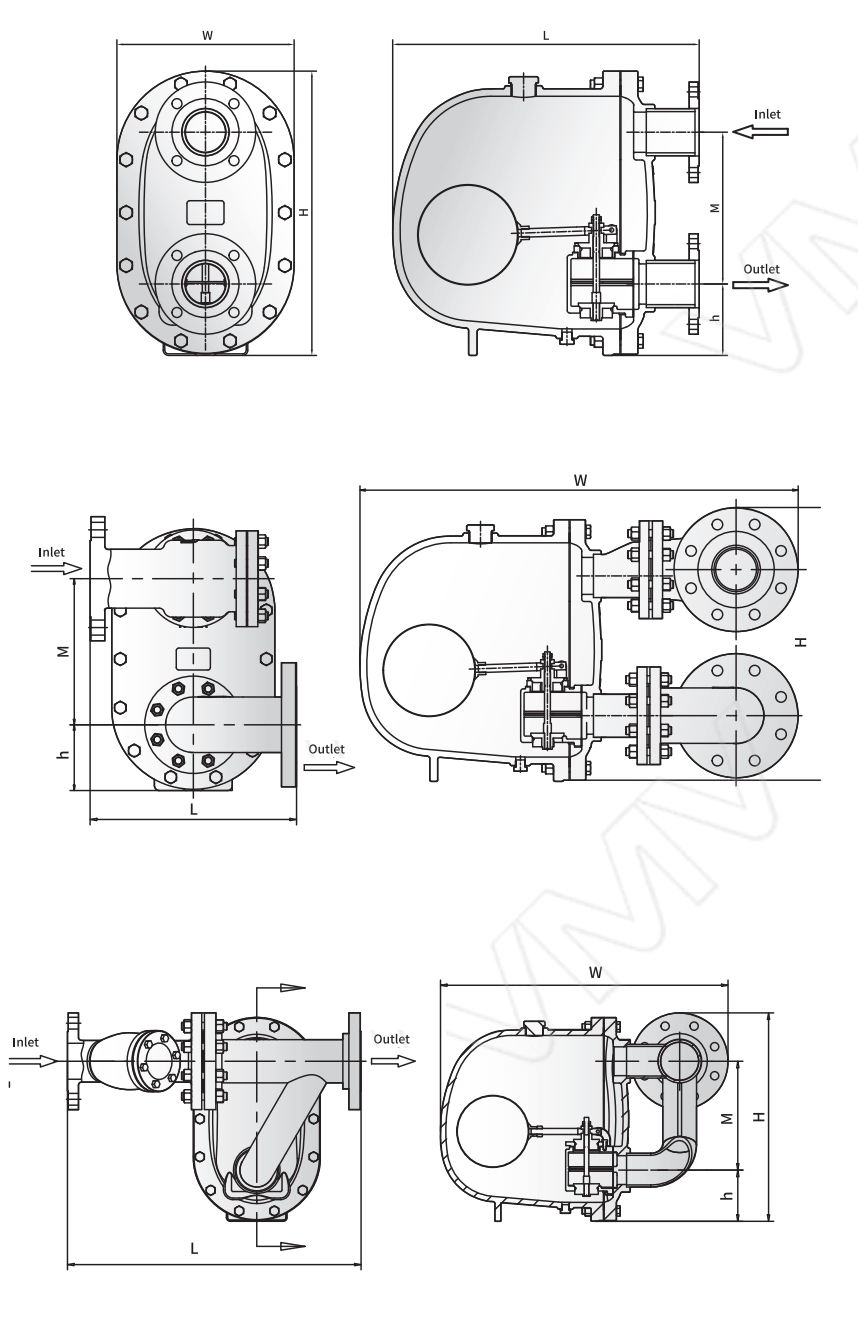

unit(mm)
| Model | Size | L | H | W | h | M | Weight |
| SFT80 | DN80 | 570 | 538 | 335 | 135 | 287 | 138kg |
| DN100 | 590 | 838 | 335 | 135 | 287 | 145kg | |
| DN150 | 630 | 565 | 335 | 135 | 287 | 150kg | |
| SFT80A | DN80 | 310 | 480 | 620 | 135 | 287 | 160kg |
| DN100 | 350 | 540 | 900 | 135 | 287 | 185kg | |
| DN150 | 420 | 610 | 960 | 135 | 287 | 200kg | |
| SFT80B | DN80 | 720 | 530 | 740 | 135 | 287 | 160kg |
| DN100 | 775 | 550 | 758 | 135 | 287 | 190kg | |
| DN150 | 900 | 570 | 775 | 135 | 287 | 210kg |
