Description
Working Principle
.Based on the differential density of steam and liquid.
.the main valve is guided to open through the pilot valve, and the capacity is large.
Features
- The valve body and valve cover are all made of forged steel/cast steel.
- Internal parts are all made of stainless steel and added with anti-wear allowance, extend trap life.
- U-shaped flow channel design, to achieve water sealing effect, no leakage of steam.
- Reliable flexible closure system with patented technology, no steam leakage.
- Install anti-water hammer device.
- Built-in check valve, suitable for superheated steam environment.
- Built-in filter allows the steam trap to work in a clean environment,

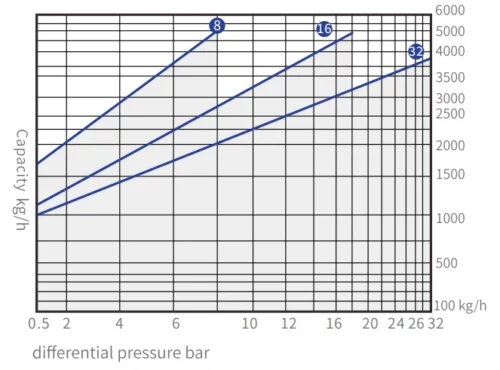

- Select different capacity curves according to the pressure difference to increase the capacity
- The back pressure rate is as high as 90% or more.
- After the steam is stopped, the condensed water can be removed by opening the screw plug to prevent damage to the steam trap due to low temperature freezing.
