Inverted Bucket Steam Trap SBT11A

SBT11A Inverted Bucket Steam Trap

The body and cover are all made of stainless steel.
All internal parts are made of stainless steel, and the wear allowance has been fully considered in the design of moving parts, which improves the service life of the trap.

SBT11A Inverted Bucket Steam Trap

Description

Description

Working Principle

Based on the differential density of steam and liquid.

Features

The body and cover are all made of stainless steel.
All internal parts are made of stainless steel, and the wear allowance has been fully considered in the design of moving parts, which improves the service life of the trap.
Internally installed U-shaped stainless steel pipe flow channel design to achieve water sealing effect.
Reliable flexible closure system with patented technology, no steam leakage.
External filter connector, so that the trap works in a clean environment.
The back pressure rate is as high as 90% or more.

Technical Standard

GB/T12250-2005 Steam Trap Terminology Marking Structure Length
GB/T22654-2008 Technical Conditions for Steam Traps
GB/T12251-2005 Test Method for Steam Traps
ISO 6948 Automatic steam traps

Production and performance characteristic tests

Technical Parameter

Nominal pressure	PN25
Max. allowable pressure (Shell)	1.89MPa/50℃
Max. allowable temperature (Shell)	350℃/1.62MPa
Factory steam action test	>3 times/1.6MPa
Max. operating pressure	1.6MPa
Max. operating temperature	350℃
Factory cold test pressure	3.8MPa
Air test	0.6MPa

Bonnet : F304/F316
Body : F304/F316
Seat :420
Disc: 440C+304
Other internal parts: 304

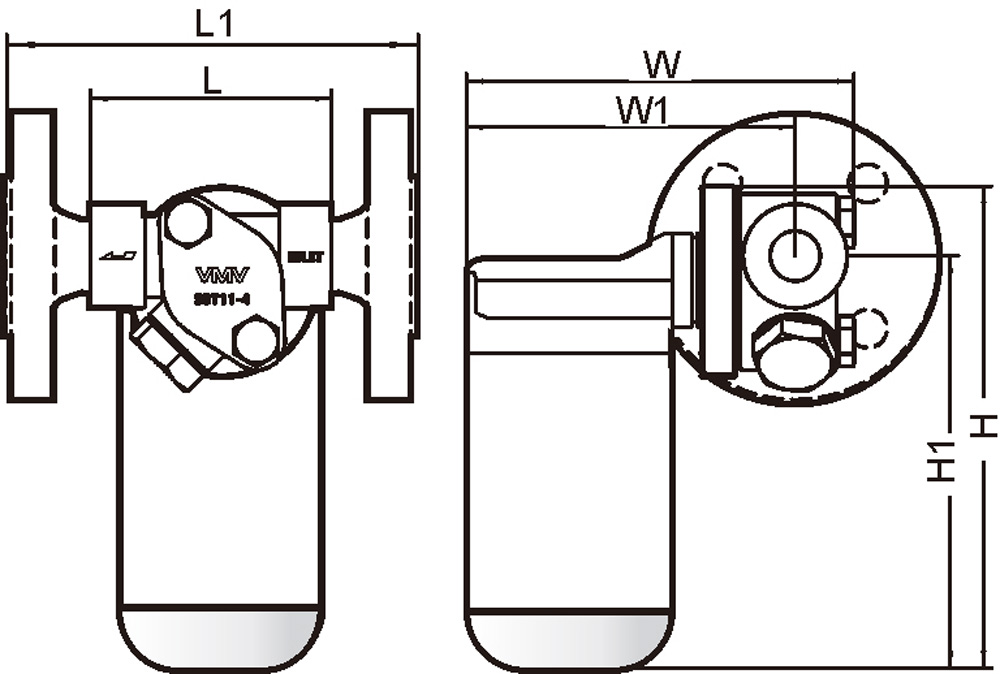

unit (mm)

Model	Size	L	L1	W	W1	H	H1
SBT11A	DN15-25	88	210	152	130	176	150

Weight
SBT11A：4.2Kg
SBT11AF：6.1Kg
