Description
Features

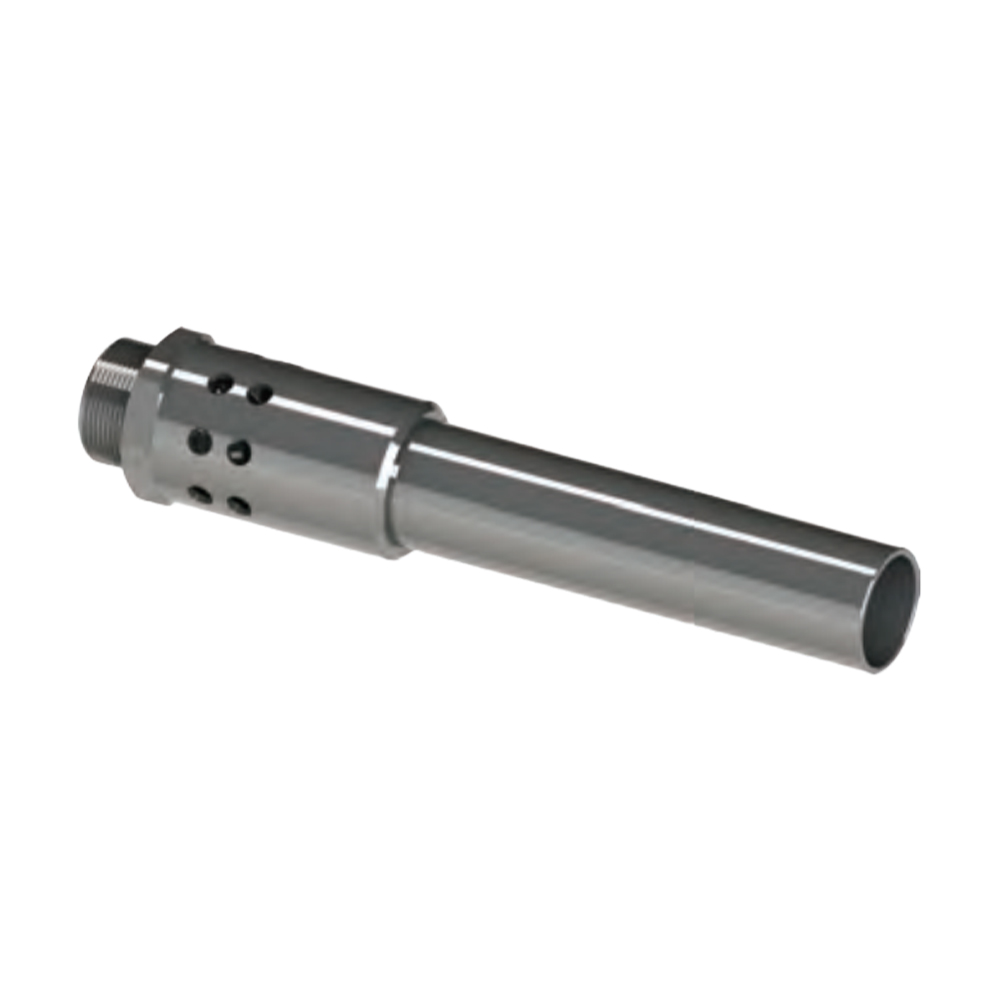

Single mixers are used where steam is used to heat water or other fluids. When working, the highly sprayed steam inhales the liquid from the ring hole, mixes it, and then sprays the heated medium into the water tank. The steam and the medium are fully mixed to avoid the difference in temperature stratification.

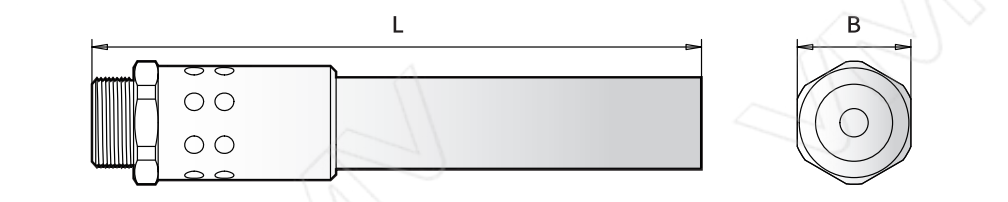

The single mixer has external thread and butt welding type, and two or more injectors can be installed in parallel when higher flow rates are required.
Structural Features
All stainless steel.
No moving parts, compact work involving noise and vibration minimization
Occasion Applicable
Boilers Ideal for feed water heating and deaeration Efficient steam heating, mixing and circulation of water and other fluids.
Installation Precautions
The single mixer is installed at a lower position in the tank, preferably at the center line, spraying steam horizontally.
Pipes can be installed inside or outside the tank. Steam piping must be securely secured against vibration and stress on the tank walls.
It is recommended to use a suitable adhesive for threaded joints.
