Description
Product Description

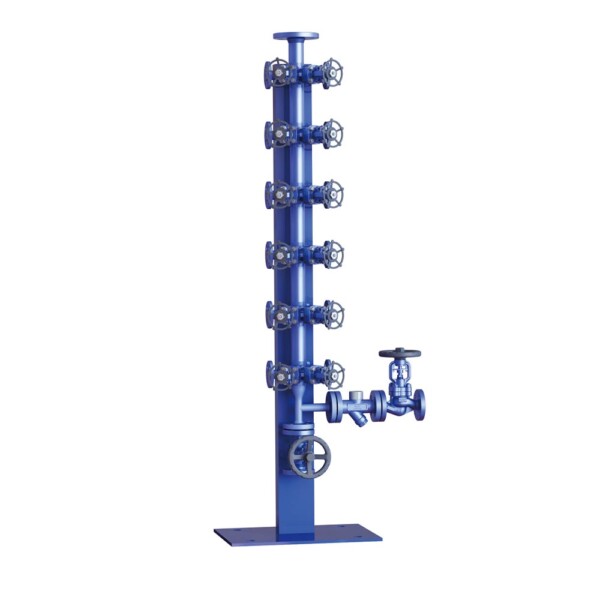

VMV’s “Steam Distribution Manifolds” integrates all the components required for it (steam traps, manifolds, valves, etc). All components are installed on the base bracket, and the manifolds are scientifically distributed on both sides to provide a compact, easy-to-disassemble centralized positioning assembly. The Body is made of forged carbon steel material A105, the main body is dense, and it is suitable for highpressure chemical pipelines and pipeline heating.Structural Features
- Integrated design, solid structure, shorten on-site construction time.
- Maximize installation space saving and easy maintenance.
- Integral ball seal face and Stellite alloy hardened seat for perfect sealing.
- Adopt stainless steel bellows design, easy to open, durable, eliminate leakage at the packing.

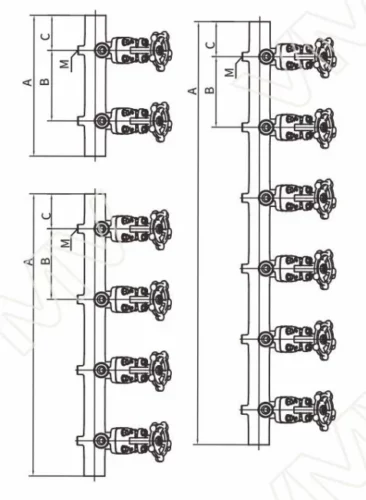

Bellows Forged Steel Steam Distribution Manifolds
Steam Inlet
Bellows Globe Valve
- The steam inlet is equipped with a bellows globe valve
- Ensure zero leakage and maintenance free at the packing
- Line Sealed Seat
- Improve sealing performance
Manifolds Body Forged Carbon Steel
- Centralize all steam distribution valves
- Standardized and integrated skid-mounted combination
- Reduce construction time and cost for on-site installation
- Configure VMV bellows globe valve and steam trap
- Built-in bellows globe valve ensures zero leakage at packing
- Spherical line sealing structure of valve core improves sealing performance
Steam Traps
- Bottom configuration steam trap
- Remove condensed water
Manifolds Assembly Base
- Optional customized steel base and frame
- Manifolds on both sides for optimal installation sequencing
- Easy on site installation
Bellows Forged Steel Condensate Collection Manifolds
Condensate Outlet
Bellows Globe Valve
- Condensate outlet configuration
- Bellows globe valve
- Ensure zero leakage at the packing
- Maintenance free
- Line Sealed Seat
- Improve sealing performance
- Precision machined stainless steel handwheel
- Ergonomically Design
Steam Traps
- Equipped with carbon steel thermodynamic,
thermostatic, bucket inverted steam traps.
Manifolds Body Forged Carbon Steel
- Centralize all condensate recovery valves
- Standardized and integrated skid-mounted combination
- Reduce construction time and cost for on-site installation
- Configure VMV bellows globe valve and steam trap
- Built-in bellows globe valve ensures zero leakage at packing
- Spherical line sealing structure of valve core
Manifold Assembly Base
- Optional customized steel base and frame
- Manifolds on both sides for optimal installation sequencing
BCPM03-12
Stainless Steel Trap
Combination
- Equipped with stainless steel bucket inverted steam trap and
stainless steel trap station, (-Front and rear stainless steel globe
valve, stainless steel filter, check valve) - Fully enclosed, shockproof enclosure
- Small, Lightweight Traps
- Freezeresistant, no damage
Manifolds Body Forged Steel Material
- Equipped with carbon steel thermodynamic, thermostatic, bucket inverted steam traps.
- Super strong siphons inside the manifolds form a water seal
- Back pressure recovers condensate at low points in the pipeline
Manifold Assembly Base
- Optional customized steel base and frame
- Manifolds on both sides for optimal installation sequencing

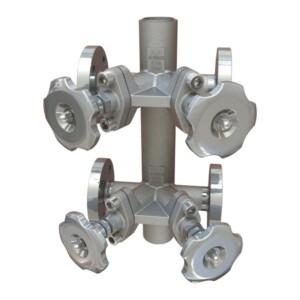

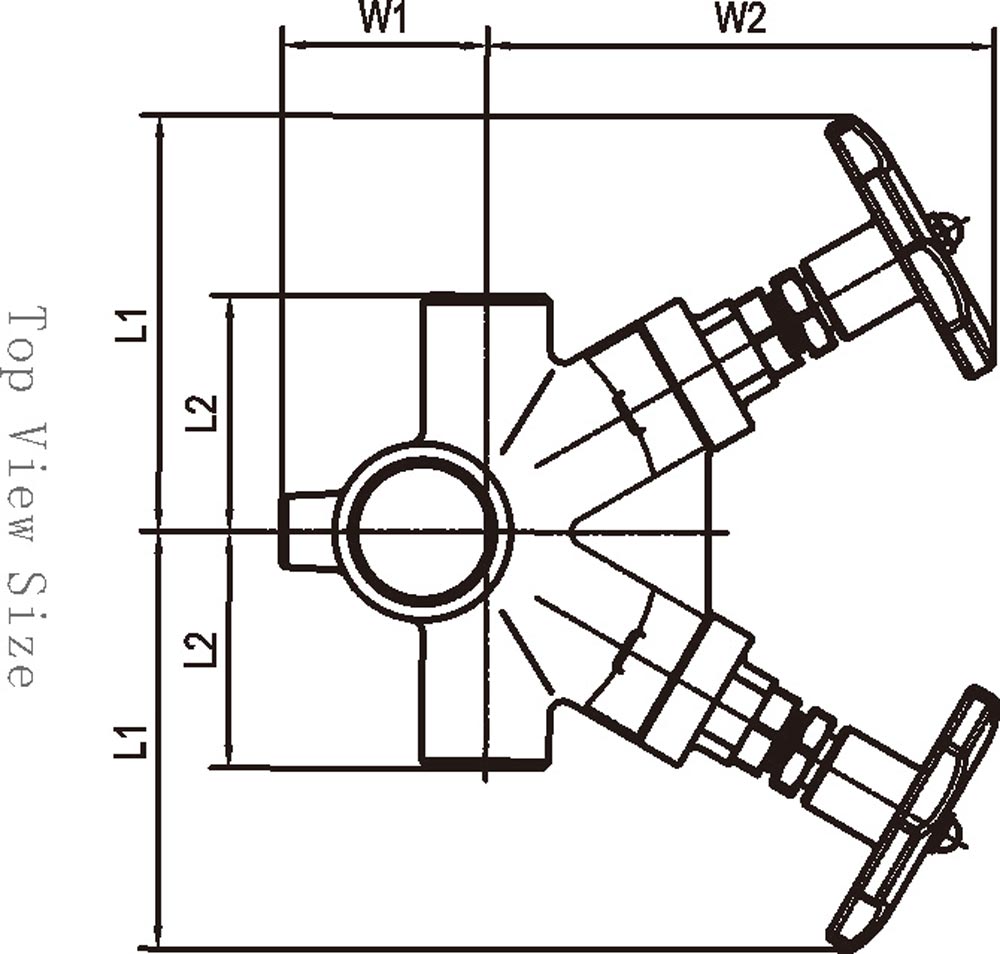

Bellows Forged Steel Manifolds
Manifold Body
- High strength and corrosion resistance
- Temperature resistant up to 350°C
- Integrated, compact structure
Valve Core, Valve Seat
- Integral spherical valve core
- Mating Conical Seat
- Achieve linear sealing
- Improve sealing performance
- The valve core adopts martensitic hardening treatment
- Improve scour resistance
Handwheel
- Integral molding of handwheel made of die-cast
aluminum material - Light weight and high strength
Gland, Packing Gland
- The packing compaction structure is center-adjustable
- Split gland, packing gland
- Prevent valve stem from sticking
Valve Bonnet
- Special custom forged bonnet
- High structural strength
Bellows Assembly
- Built-in stainless steel bellows assembly
- It and the graphite packing realize the
double sealing guarantee of the valve stem
