Stainless steel SS304 has beautiful appearance and good performance.
The subcooling degree of the Thermostatic (film box) trap is 15℃to remove the condensed water below the saturation temperature, and the energy saving is effective.
Effectively prevent pipeline impurities from entering the valve to ensure the proper operation of the trap.
All internal parts are made of stainless steel SS304, suitable for food, medicine and other industries.
Film box traps are widely used in heat tracing pipelines and equipment with small displacement and low temperature require-ments due to their small size, large subcooling degree, good energy saving effect and low temperature resistance.
The technical advantages of VMV traps are unique and reasonable structure and high-precision internal parts.
•GB/T12250-2005 Steam Trap Terminology Marking Structure Length
•GB/T22654-2008 Technical Conditions for Steam Traps
•GB/T12251-2005 Test Method for Steam Traps
•ISO 6948 Automatic steam traps
Production and performance characteristic tests
VMV Film box trap body and bonnet are made of 304, which can be used in the clean environment, such as medical, health, food and other industries. The Film box is made of stainless steel, and the condensate discharge temperature is subcooled at 15- 20°C.
The Film box trap adopts linear sealing closing system, which has no noise, good air exhausting capacity, fully utilizes the sensible heat of condensed water, and has good energy saving effect.

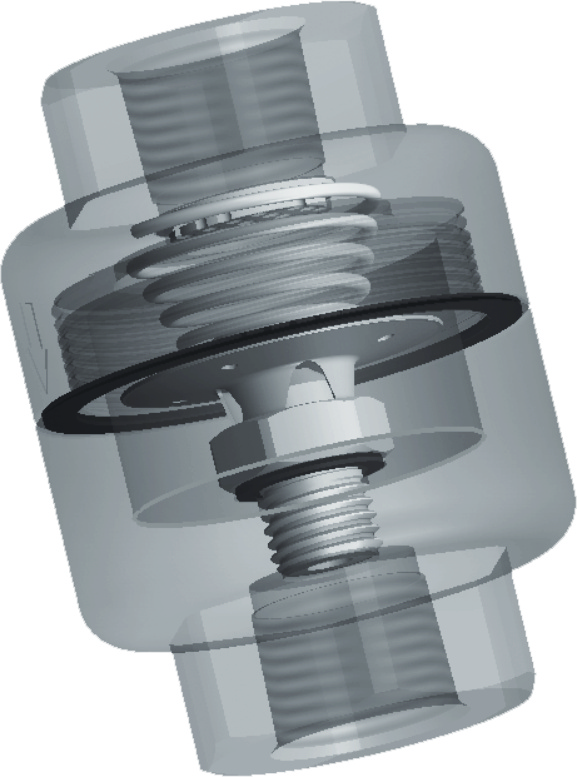

Film box traps work on the difference in temperature between steam and condensate. When the steam in the pipe releases heat and the temperature decreases to produce condensate, the diaphragm in the diaphragm box shrinks and moves to open the valve seat to discharge condensate. The Film box trap can be used as a vent valve.
