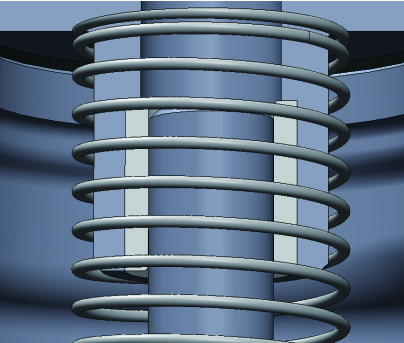

① ·Cylindrical compression spring.
·Precise resetting elatiscity, strong corrosion resistance

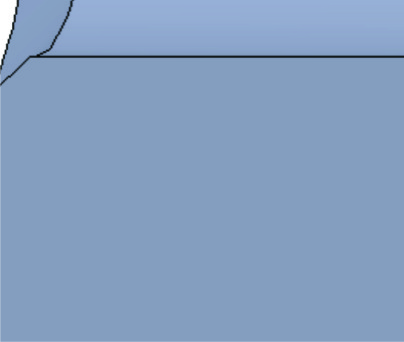

③German coated sand casting. Surface finish:12.5~25 microns

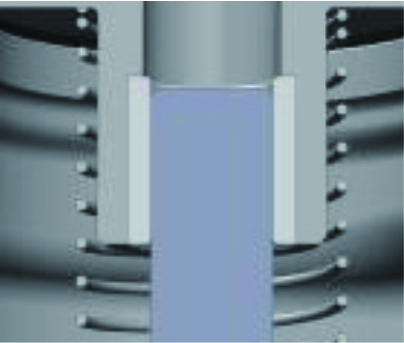

②Stainless steel guide sleeve can limit its position
Wear and corrosion resistance

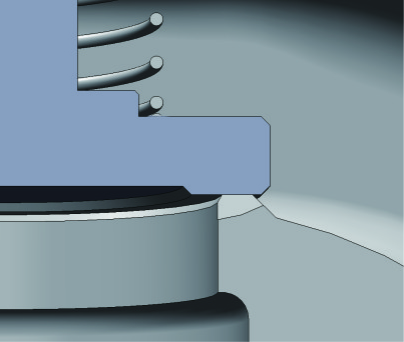

④Sealing surface is wear-resistant and corrosion-resistant
Design standard: EN12516
Face to face dimension: EN558
Flange ends: EN1092-1
Test & inspection: EN12266
Thermal oil,Steam,Hot and cold water,Fay acids, Ammonia, Natural gas, etc.
| Name | Material |
| Body | GS-C25 |
| Seat | 13Cr,SS304,SS316,Stellite |
| Disc | 13Cr,F304,F316,Stellite |
| Bellows | SS304,SS316L |
| Stem | 13Cr,SS304,Copper alloy |
| Bonnet | GS-C25,CF8,CF8M,CF3M |
| Nominal Pressure | PB(MPa) | |
| Test Pressure | Shell Test | 1.5xPr |
| Sealing Test | 1.1xPr | |
| Air Test | 0.6 | |
| Bellows Assembly Test | 1.5xPr | |
| Suitable Temp | -196℃~600℃ | |
| NotePr is the pressure rang of the material at room temperature, the unit is MPa | ||

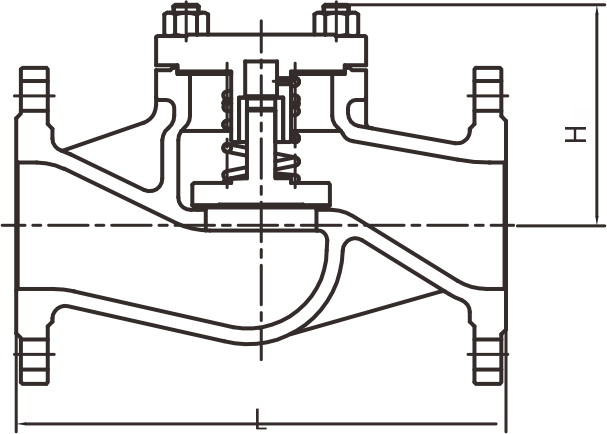

| DN | PN16 | PN25 | PN40 | |||
| L | h | L | h | L | h | |
| 15 | 130 | 78 | 130 | 78 | 130 | 78 |
| 20 | 150 | 82 | 150 | 82 | 150 | 82 |
| 25 | 160 | 91 | 160 | 91 | 160 | 91 |
| 32 | 180 | 95 | 180 | 95 | 180 | 95 |
| 40 | 200 | 101 | 200 | 101 | 200 | 101 |
| 50 | 230 | 109 | 230 | 109 | 230 | 109 |
| 65 | 290 | 119 | 290 | 119 | 290 | 119 |
| 80 | 310 | 139 | 310 | 139 | 310 | 139 |
| 100 | 350 | 155 | 350 | 155 | 350 | 155 |
| 125 | 400 | 192 | 400 | 192 | 400 | 192 |
| 150 | 480 | 220 | 480 | 220 | 480 | 220 |
| 200 | 600 | 303 | 600 | 303 | 600 | 303 |
| 250 | 730 | 346 | 730 | 346 | 730 | 346 |
| 300 | 850 | 387 | 850 | 387 | 850 | 387 |
| 350 | 980 | 441 | 980 | 441 | 980 | 441 |
| 400 | 1100 | 570 | 1100 | 570 | 1100 | 570 |
